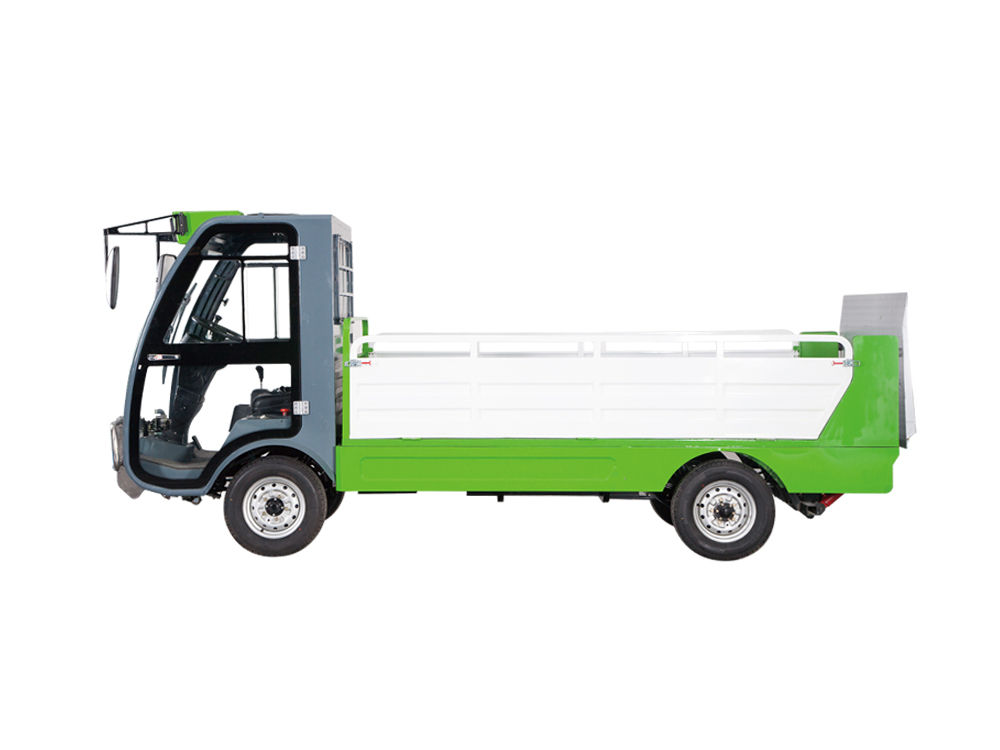

Ruibao Y10 pure electric garbage collection vehicle is mainly used for the collection and transportation of classified garbage cans in residential areas, towns, commercial areas, scenic spots, schools and other places. It is pure electric operation with low cost and zero emission.

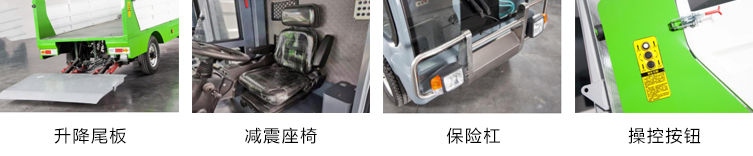

◆Body: fully enclosed cab, transparent glass on three sides, front stainless steel bumper, high-quality high-strength metal body, good working sight, safe and beautiful.
◆Battery: 12 * 6V / 200ah maintenance free lead acid batteries and 72V / 250ah lithium battery pack

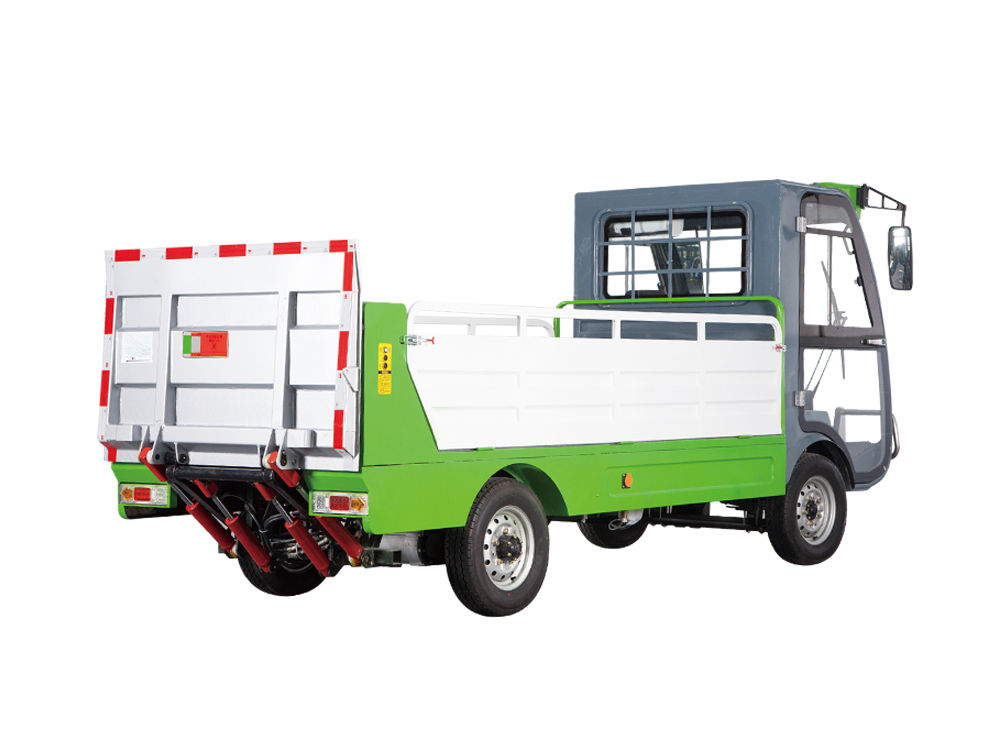

◆Hydraulic system: 72V DC motor double cylinder four bar hydraulic device, which can be operated by wire or wireless remote control to control tailboard operation
◆Seat: cushion and shock absorption seat, with gravity sensing device, strong safety
◆Steering system: electric power steering system
◆Tire: four wheel, radial brand vacuum tire, wear resistance, long service life
◆Temperature control system: cold and warm air conditioning (limited to lithium battery version)
| Parameters | Ruibao Y10 pure electric garbage truck |
| Voltage / rated power | 72V/6.5Kw |
| Mileage | ≥100Km |
| Number of barrels | 6only（240LStandard trash can） |
| Rated load | 1250kg |
| Maximum driving speed | 35Km/h |
| braking distance | ≤4m |
| Climbing ability | ≥30% |
| Turning radius | ≤5m |
| Box size | 2530*1380*600mm（Fence height） |
| Dimensions | 4110*1380*2020mm |
| Net weight | 1460kg（Lead acid）、1240kg（Lithium battery） |
| Number of passengers allowed | 2 people |
